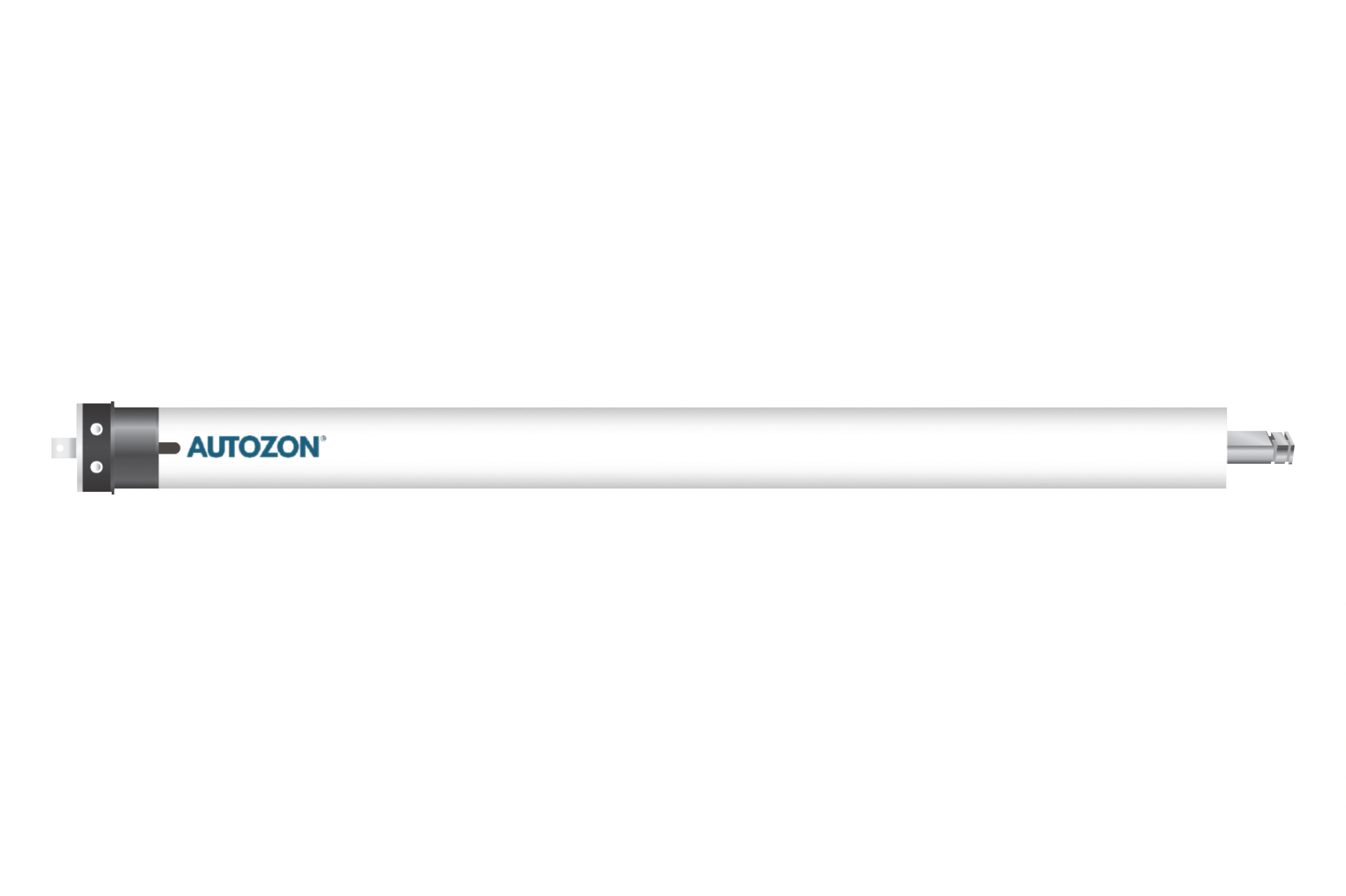

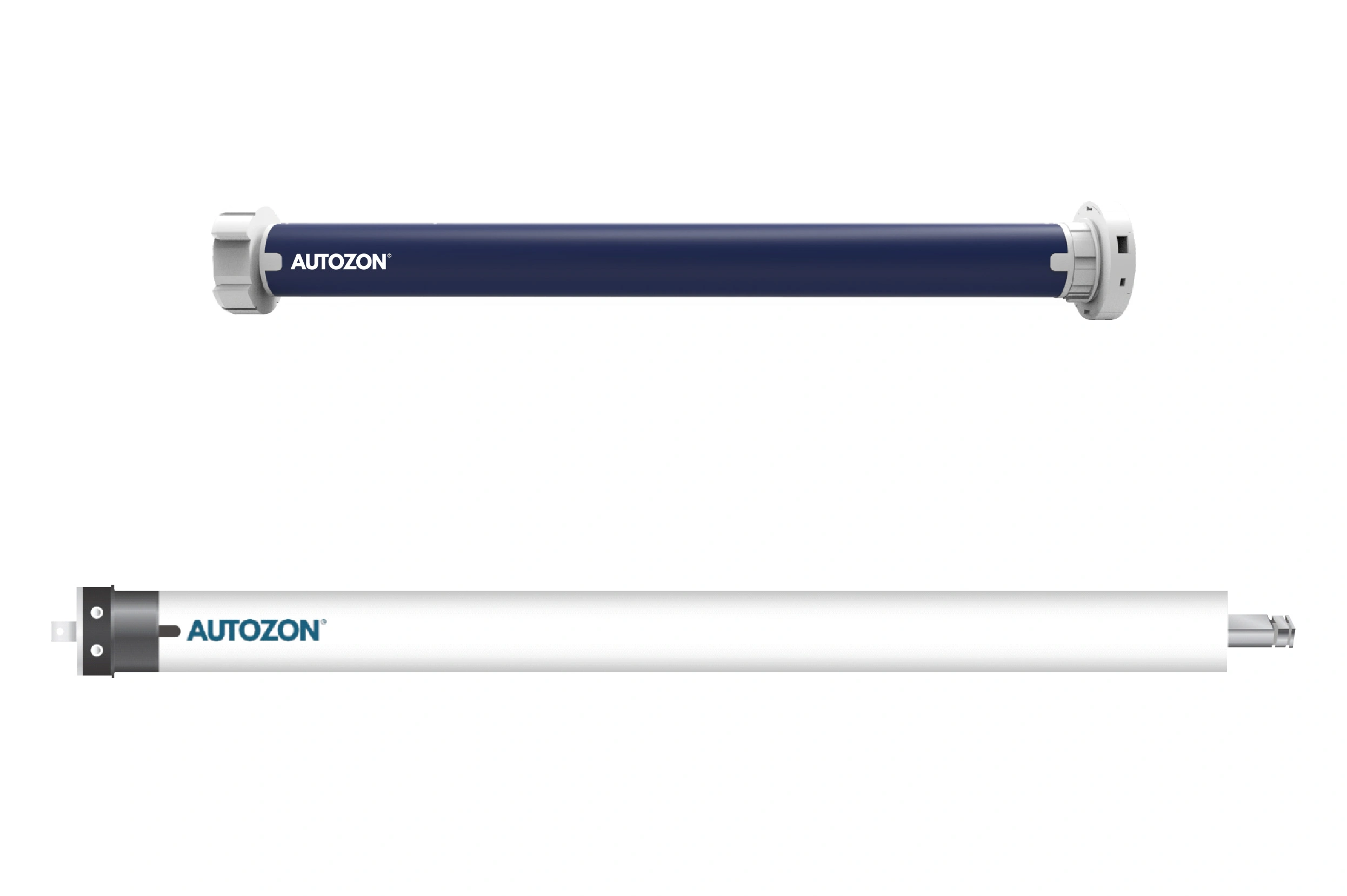

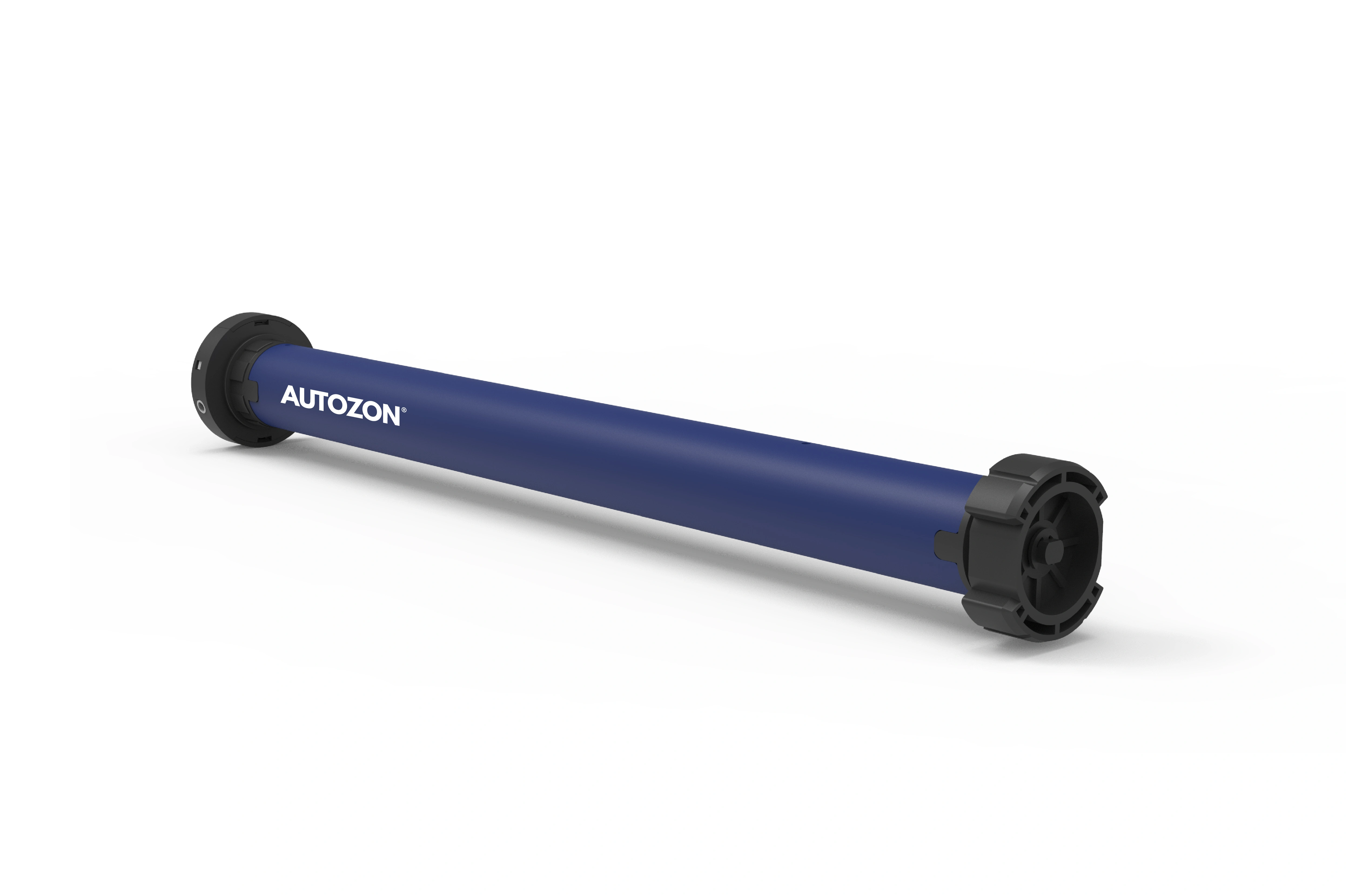

- Tubular operator for blinds and rolling shuers.

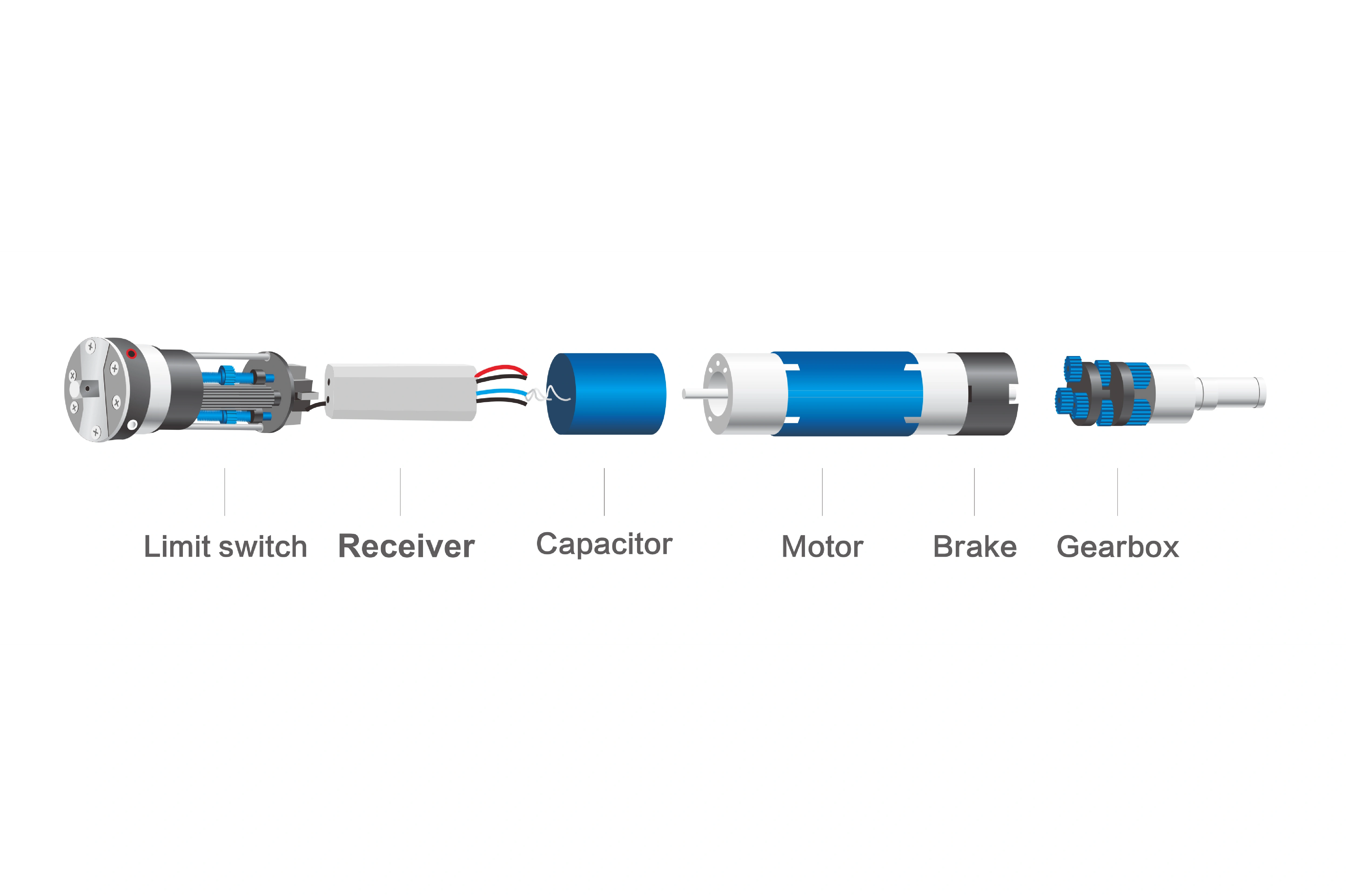

- Built in receiver, can realize variety of control Functions
- Mechanical & Electronic limit switch, with accurate limit position
| Technical Specification | Normal Power Motor AZ CO 1.2 Nm 5W | High Power Motor AZ CO2 1.2 Nm 5W | Tuya Motor AZ CO TUYA 30 |
|---|---|---|---|
| Rated Torque | 1.2 Nm | 2 Nm | 1.2 Nm |
| Rated Voltage | 220 V -240V AC | 220 V -240V AC | 220 V -240V AC |
| Rated Power | 40 W | 80 W | 40 W |
| Max Load | 50 Kg | 120 Kg | 50 Kg |
| Remote Distance | ≥ 50m | ≥ 50m | ≥ 50m |
| Protection Class | IP 20 | IP 20 | IP 20 |
| Track Specification | AZ CO 3.2 | AZ CO 5.2 | AZ CO 7.2 |
|---|---|---|---|
| Size | 3.2 m | 5.2 m | 7.2 m |
| Track Length (1000) | 2 mm | 4 mm | 6 mm |
| Track Connector (100) | 2 mm | 4 mm | 6 mm |
| Adjustable - Track Length (500) | 1 mm | 1 mm | 1 mm |
| Adjustable - Track Length (200) | 2 mm | 2 mm | 2 mm |
| Adjustable - Track Length (100) | 1 mm | 1 mm | 1 mm |
| Adjustable - Track connector (200) | 1 mm | 1 mm | 1 mm |
| Adjustable - Track connector (100) | 1 mm | 1 mm | 1 mm |
| Suitable Size | 2.2 m - 3.2 m | 4.2 m - 5.2 m | 6.2 m - 7.2 m |

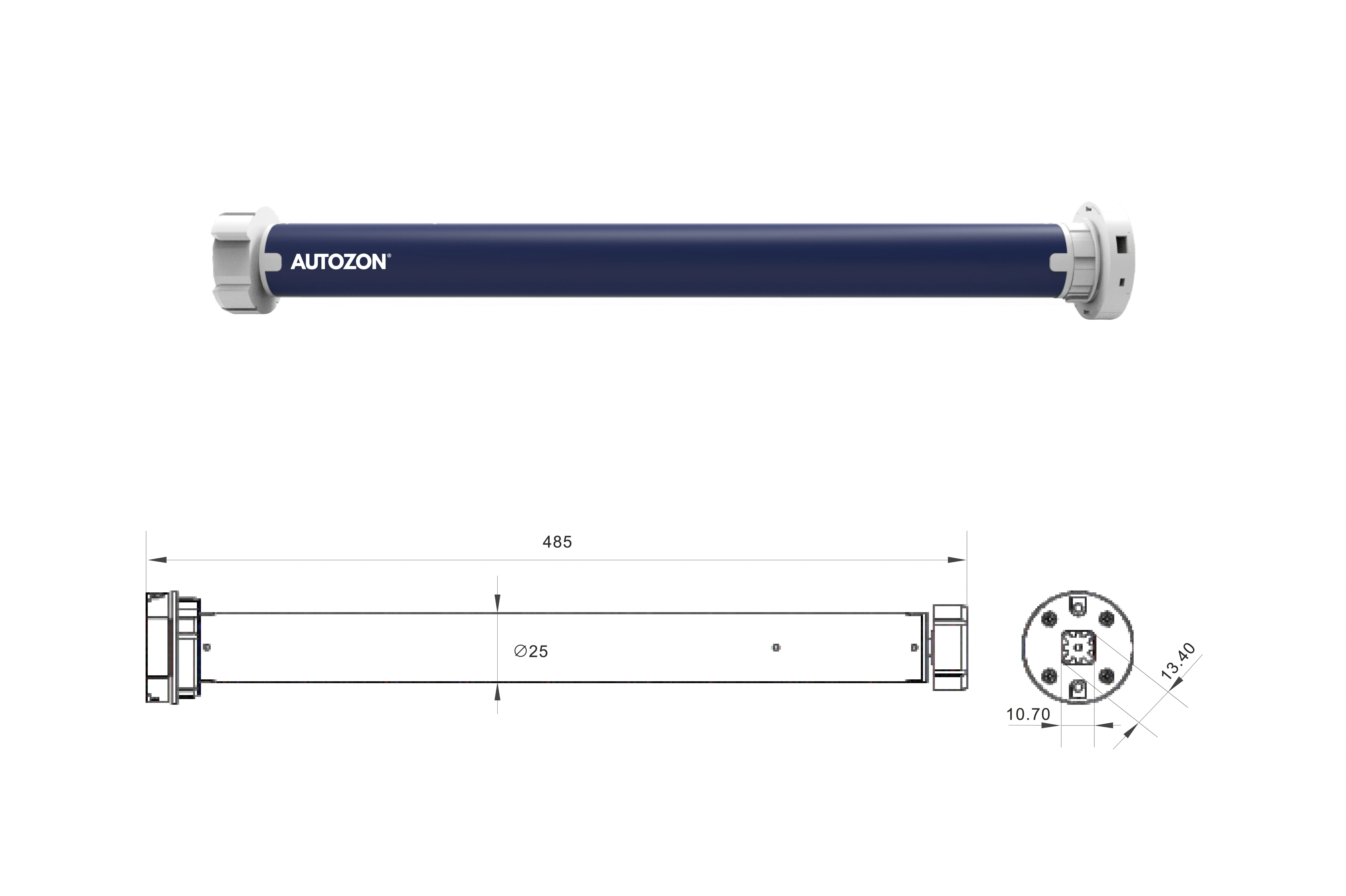

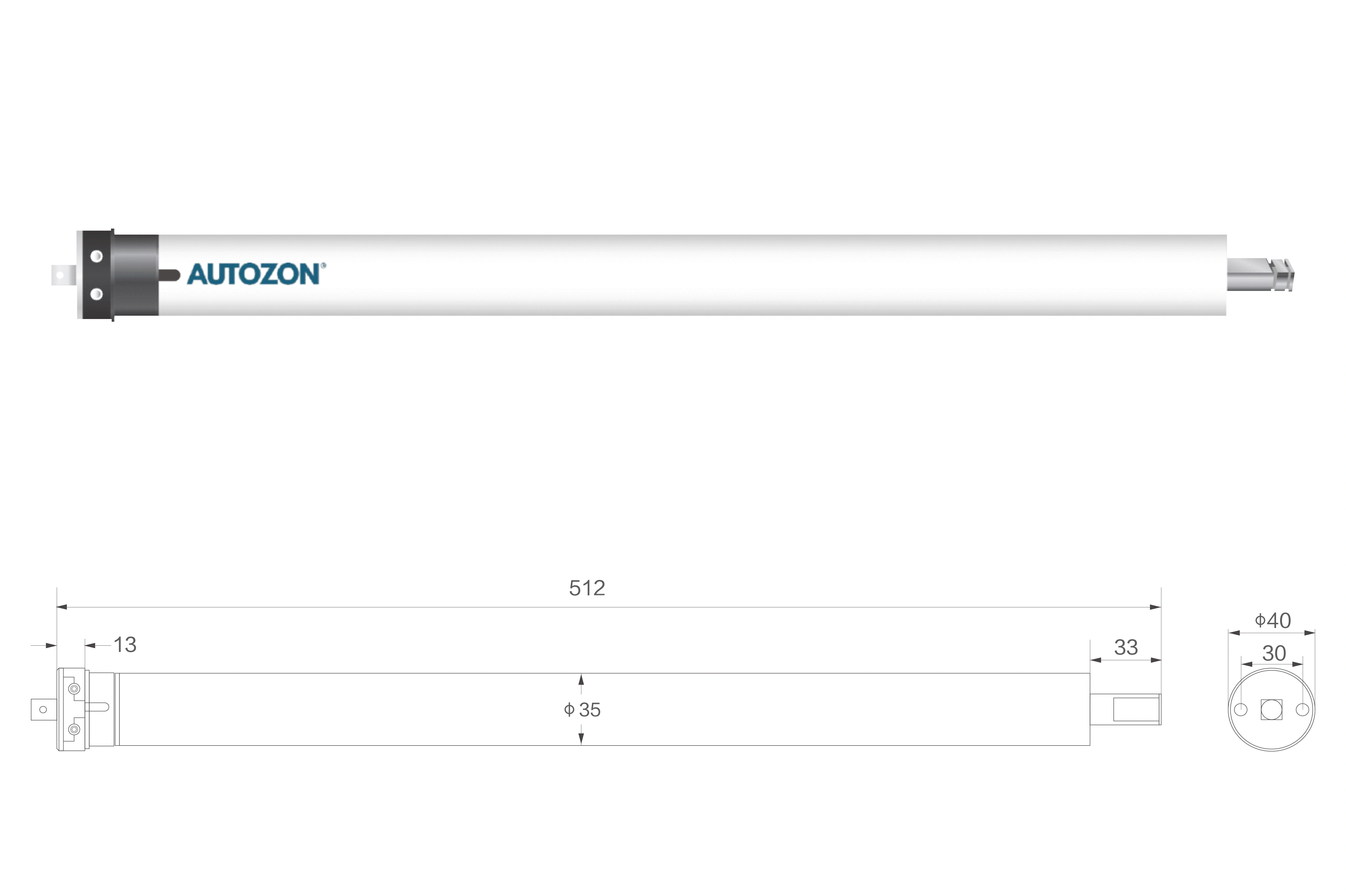

| Technical Specification | AZBO25R | AZBO35R6 | AZBO35R13 |
|---|---|---|---|
| Rated Torque | 1.1 Nm | 6 Nm | 13 Nm |
| Rated Speed | 30 RPM | 28 RPM | 14 RPM |
| Power Supply Voltage | 220 V - 240 V AC | 220 V - 240 V AC | 220 V - 240 V AC |
| Motor Power | 10 W | 115 W | 126 W |
| Rated Current | 1 A | 0.68 A | 0.75 A |
| Motor Diameter | 25 mm | 35 mm | 35 mm |
| Limit Turns | Electonic Limit | 42 turn | 42 turn |
| Running Time | ≤ 4 mins | ≤ 4 mins | ≤ 4 mins |
| Max Load | 5 kg | 18 kg | 35 kg |
| Max Width | 2.5 Mtr | 3 Mtr | 6 Mtr |
| Max Height | 2.5 Mtr | 3 Mtr | 6 Mtr |
| Protection Class | IP 44 | IP 44 | IP 44 |
| Protection Weight | 2 Kg | 2.2 Kg | 2.5 Kg |
